NEUROONE PORTFOLIO
The Evo® Cortical Electrode Advantage
Decreased Immunological Response

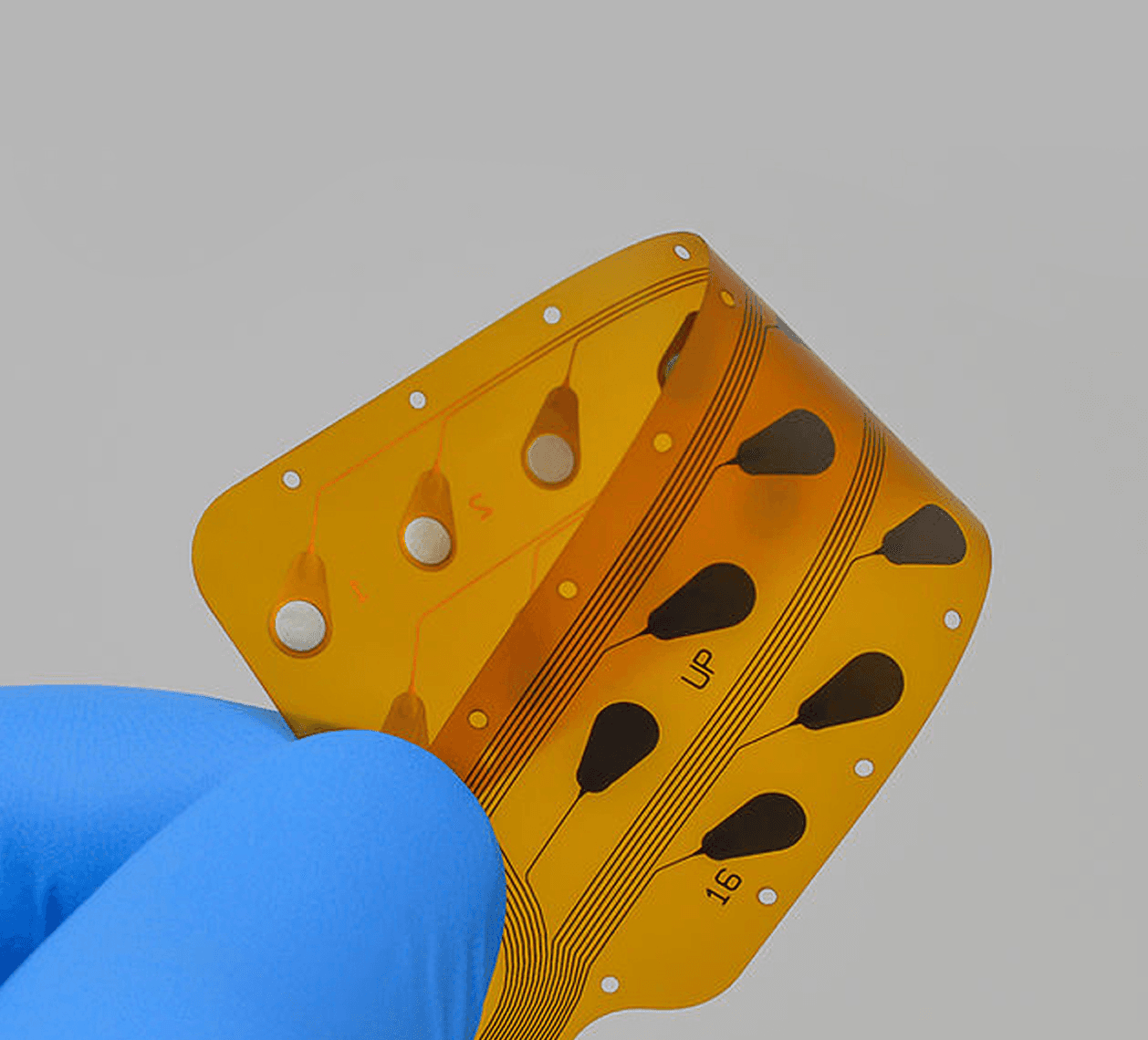

The Evo® Cortical Electrode is over 7 times thinner than a silicone electrode. The flexibility and reduced volume should reduce pain and edema. (2)
The Evo’s polyimide substrate has properties like increased flexibility, reduced volume, and decreased immunological response, which should reduce signal artifacts. (3)
Single Tail Design

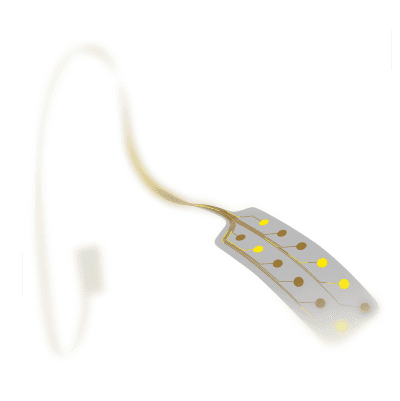

The single thin tail design allows the implanted electrode tail to be tunneled through one incision which should reduce infection risk and procedure time. (1,2)
Reduced Cable Management

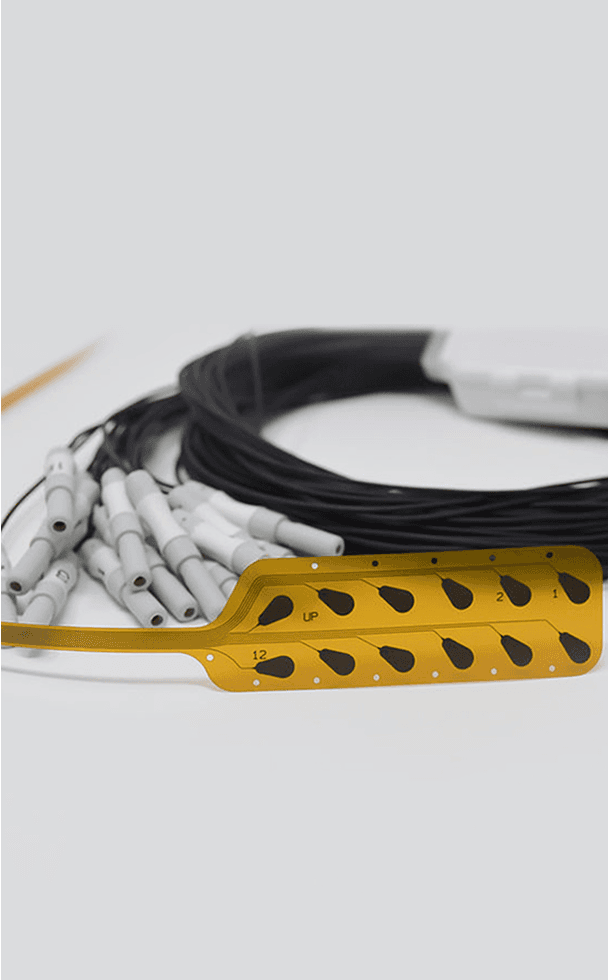

A disposable cable assembly is sent with each Evo® Cortical Electrode as an electrode kit, removing the need to source the correct cables for each electrode being used in surgery. Also, hospital resources are freed from the management of sterilizing and storing individual electrode cable assemblies.
WORRELL,G. ET. AL. DECEMBER 2019. COMMERCIAL SCALE PRODUCTION OF THIN-FILM ELECTRODE ARRAYS FOR CLINICAL INTRACRANIAL EEG. ((ABST. 1.154), 2019. AMERICAN EPILEPSY SOCIETY.
BOWER R, ET AL. DECEMBER 2017. DEVELOPMENT OF POLYIMIDE ELECTRODES FOR HIGH-RESOLUTION INTRACRANIAL EEG RECORDINGS. (ABST. 1.060) 2017. AMERICAN EPILEPSY SOCIETY.
BOWER R, ET AL. DECEMBER 2017. MULTI-RESOLUTION INTRACRANIAL EEG RODENT RECORDING SYSTEM. (ABST. 2.062) 2017. AMERICAN EPILEPSY SOCIETY.
How NeuroOne's
Thin Film Electrode
Technology is Different

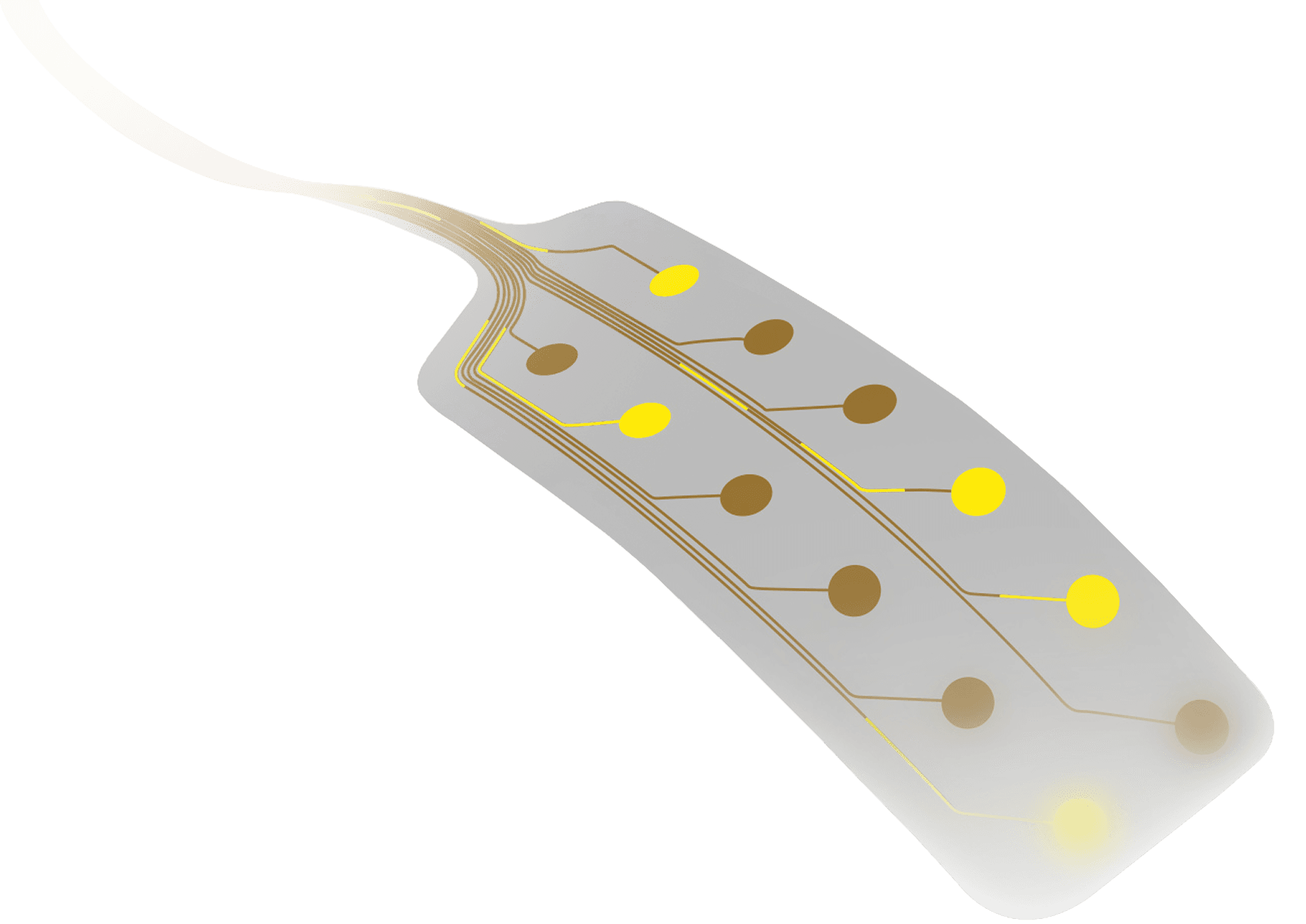

In comparison to other currently available technologies, our electrodes are manufactured with polyimide thin film. Our electrodes are designed to reduce trauma to the brain by allowing a less invasive implant due to the flexibility, thinness and reduced weight of the electrode.
Furthermore, the potential to significantly increase the resolution of brain recordings may enable the usage of powerful computing techniques, such as machine learning and artificial intelligence.

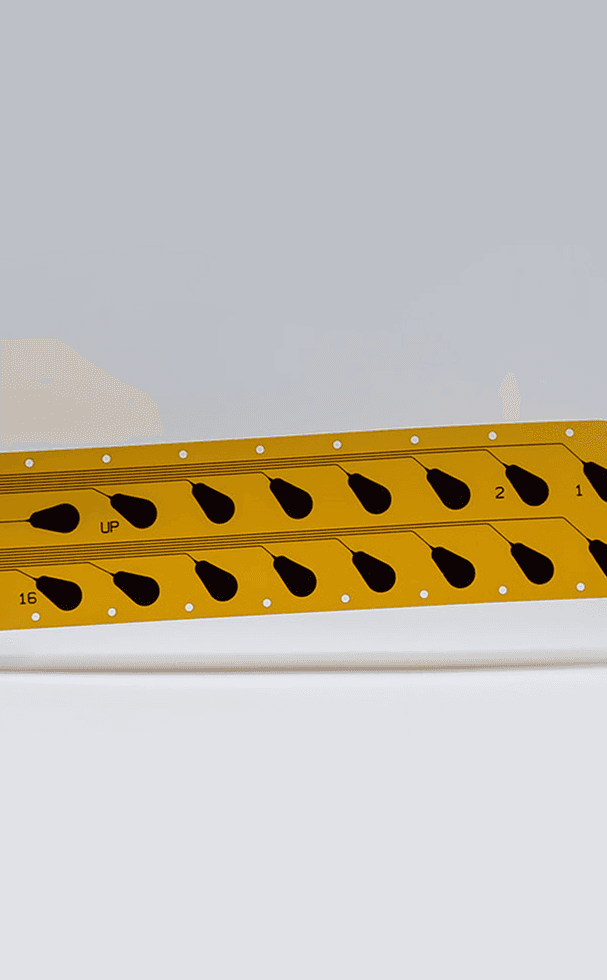

Specifications
Number of Contacts
2 - 16
Contact Spacing
10mm
Contact Size
3mm
Electrode Contact Material
Platinum
Electrode Substrate Material
Polyimide
Thickness
0.08mm
Weight
0.05 grams
Tail Length
12.70 inches
Disposable Cables
Proprietary cable assembly for the Evo® Cortical Electrode with a zero force connection box and standard DIN42802 touch-proof connectors compatible with standard headboxes.
See the Instructions for Use for additional information (e.g. Description, Indications for Use, Contraindications, Warnings, Potential Adverse Events, etc.)
Caution
US FEDERAL LAW RESTRICTS THIS DEVICE TO SELL BY OR ON THE ORDER OF A PHYSICIAN.
